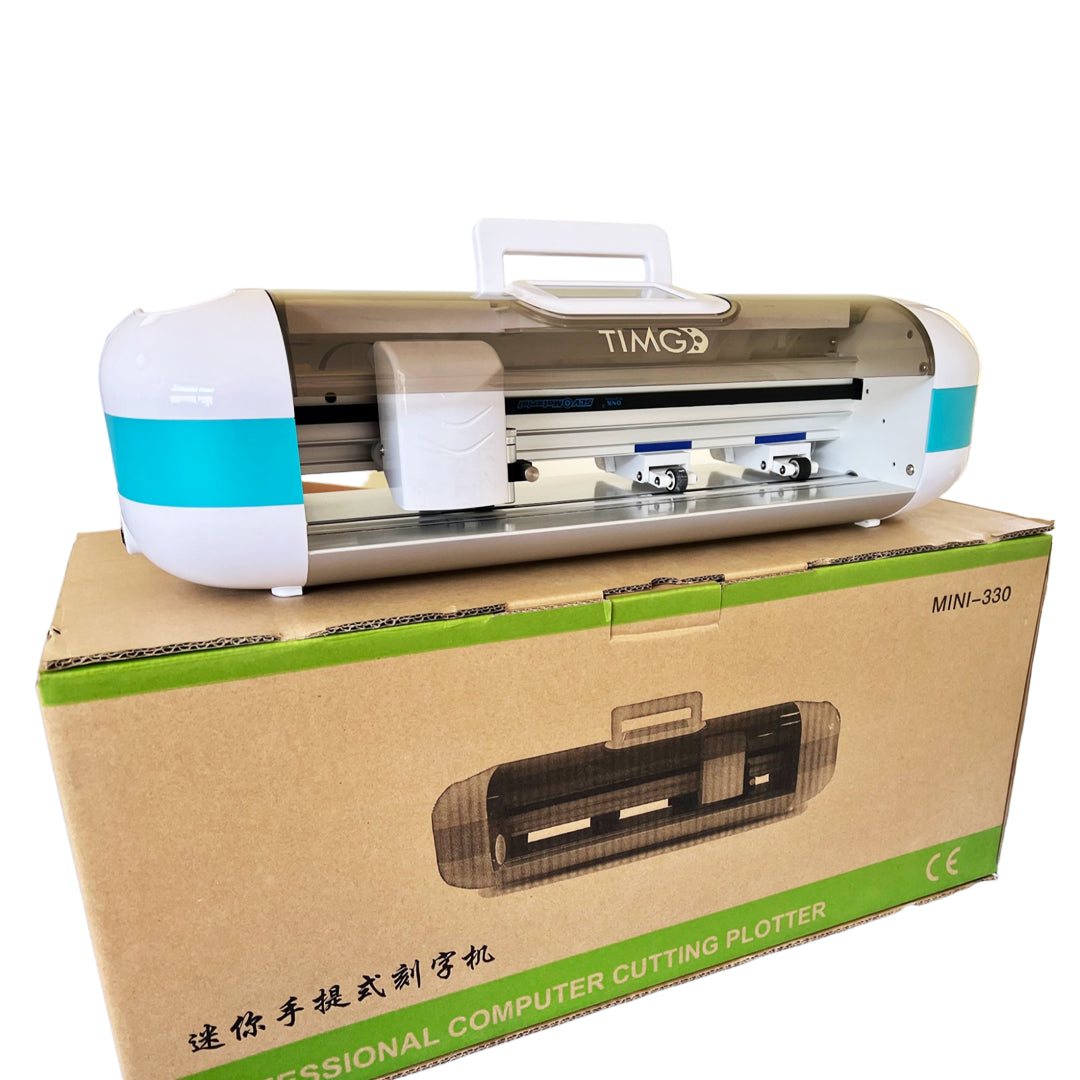

Mini Portable Cutting Plotter - Model MCR330 - 330mm Width - CCD Camera Contour Cut

Mini Portable Cutting Plotter - Model MCR330 - 330mm Width - CCD Camera Contour Cut

Regular price S/. 1,384.99 PEN
Regular price S/. 1,163.39 PEN Sale price S/. 1,384.99 PEN
Sale Sold out
Tax included. Shipping calculated at checkout.
- The MCR330 is a small portable cutting plotter that offers a cutting width of up to 330mm, it is light to carry and can cut letters and characters up to 1.5mm, equipped with 3 high-precision steel rollers, it is ideal for cutting vinyl, adhesive media, flexible materials, magnetic adhesives, cell phone protective sheets, cardboard boxes, etc. It also incorporates a CCD camera for contour cutting and die-cutting, its 4.3-inch LCD screen allows the user to user set up working parameters simply and clearly.- Model: MCR330- Main console: ARM 32 intelligent and high-performance CPU, 256MB memory- Driver: High-speed stepper motor, micro-step driver- Width maximum paper feed: 420mm- Maximum cutting width: 330mm- CCD camera: yes- Rollers: 3 high-precision steel rollers- Control panel: 4.3-inch color touch LCD screen- Die cut: yes - Maximum cutting speed: 800mm/second - Cutting force: 600g - Mechanical precision: 0.01mm - Plotter instructor: Automatic DM-PL / HP-GL identification - Interface: USB port, U disk port - Program: Singmaster included CRAFT- Voltage: AC110V / 220V ± 10%, 50Hz / 60Hz- Noise level: ≤ 30 DB- Size: 620 * 210 * 180 mm, it has a handle for carrying- Packing size: 710 * 280 * 270- Net Weight: 6 3 Kgs- Gross Weight: 8 Kgs- Assistance: Includes initial remote assistance within the warranty period- Cutting base: optional, not included- Accessories included: 1 power cord, 1 manual, 1 knife holder, 3 knives, 1 cable USB data drive, 1 pencil holder, 1 cutting mat


View full details
