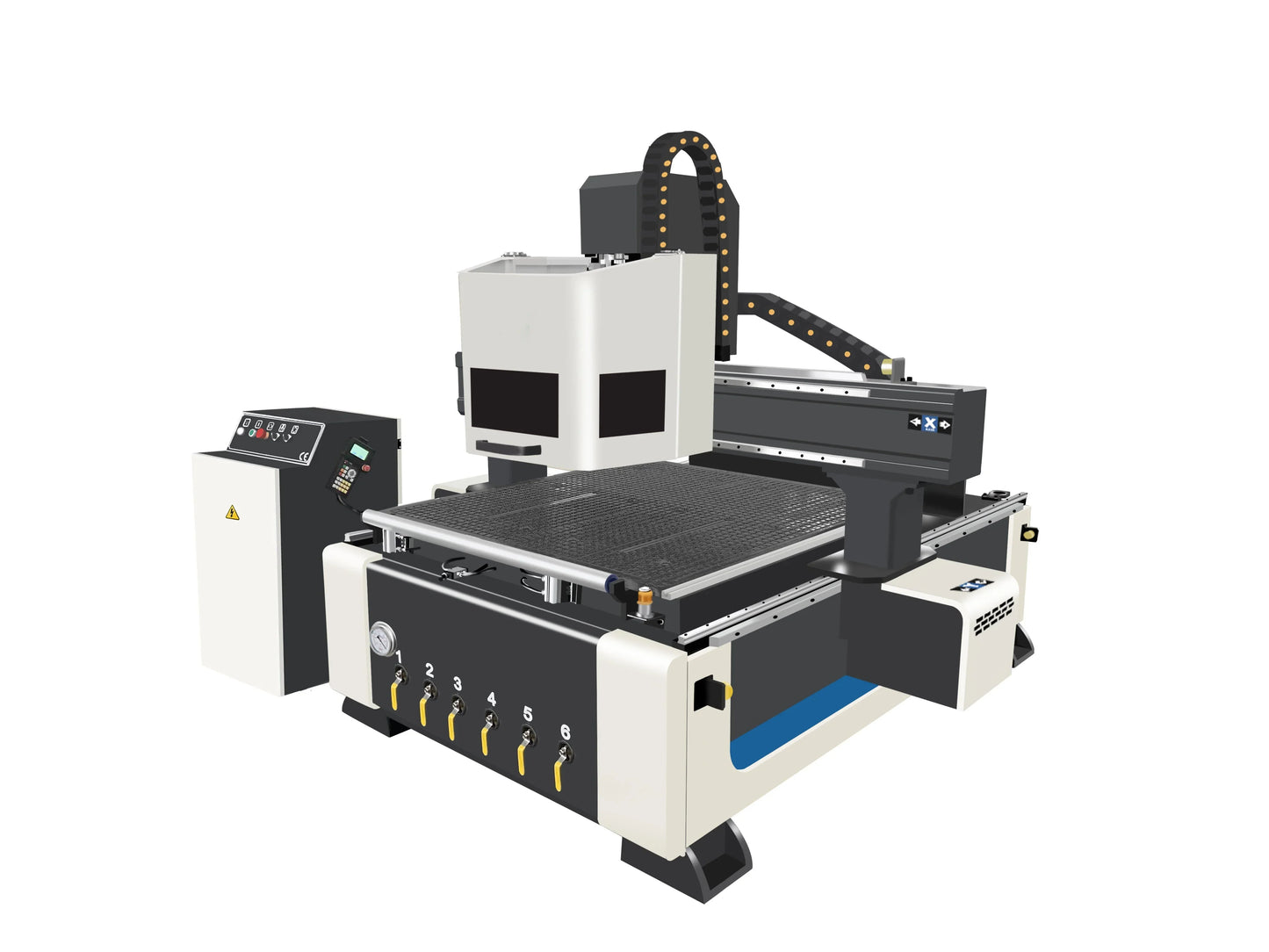

Auto Tool Change ATC Router CNC Machines 1313 1325 1530 2030

Auto Tool Change ATC Router CNC Machines 1313 1325 1530 2030

Regular price S/. 81,199.99 PEN
Regular price S/. 68,235.17 PEN Sale price S/. 81,199.99 PEN
Sale Sold out
Tax included. Shipping calculated at checkout.
CNC Router with automatic tool changer (ATC) in sizes 1313 1325 1530 2030 - with a total of 8 tools to program the automatic change You have 4 sizes to select on the side panel Introducing the FC1325-8 model, a high-end CNC machine precision and performance, designed to meet all your manufacturing needs. This model, with a weight of 1500kg and dimensions of 3400mm in length, 2280mm in width and 1800mm in height, is robust and durable, guaranteeing a long service life. The machine has a working size of 13002500200mm, which makes it ideal for a variety of tasks. Weihong NK105 G3 control system ensures smooth and precise operation, while China CC brand spindle, 9.0kw air-cooled, ER32, 24000rpm and 8 linear ATC tools at the rear, provides excellent capacity. cutting.The body of the machine and the gantry are made of high-strength metal, welded, tempered and shot-blasted, and painted twice for greater durability. The T-slot and vacuum combination table offers versatility, while Leadshine's 1500w servo driving system ensures smooth and precise movement. The machine also features a helical rack X, Y axis structure and SHIMPO gear reducer. Japan, and a Taiwan TBI original ball screw Z-axis structure. XYZ axis square rails are Taiwan CSK brand, size 25 for XYZ. In addition, the machine has 11kw Fuling brand inverter, Japan OMRON brand limited switch, France Schneider electrical parts, and a machine cable from the German Siemens OEM factory. Oil lubrication is automatic type with aluminum tube. The machine has a maximum travel speed of 50m/min and a maximum working speed of 20m/min. The working precision is ±0.2mm and the repetitive positioning precision is ±0.02mm. The machine works with a voltage of 3PH, 380V, 50/60HZ. Model FC1313-8 FC1325-8 FC1530-8 FC2030-8 Machine weight 1100kg 1500kg 1700 2000kg machine size Length 2300mm ,Wide 2280mm ,High 1800mm Length 3400mm, Width 2280mm, Height 1800mm Length 3800mm ,Wide 2280mm ,High 1800mm Length 3800mm ,Wide 2280mm ,High 1800mm work size 1300*1300*200mm 1300*2500*200mm 1525*3050*200mm 2070*3050*200mm Package High quality wrapping film bundle with metal tube Manufacturing time 30 days Warranty One year Control system Weihong NK105 G3 control system spindle China CC brand, 9.0kw air cooling spindle, ER32, 24000rpm, 8 linear ATC tools on the back Machine body and gantry High strength metal tube welding, quenching and shot blasting, twice painting Table Vacuum and T-slot combination table (Vacuum pump optional) driving system Leadshine 1500w Servo X,Y axis structure Japan SHIMPO helical rack and reducer Z axis structure Original Taiwan TBI Ball Screw XYZ axis square rails Taiwan CSK brand, size 25 for XYZ Investor 11kw Fuling brand inverter limited switch Japan OMRON brand Electric parts Schneider from France machine wire Germany Siemens OEM Factory Cable oil lubrication Automatic type with aluminum tube Machine working size X-Axis-1300mm, Y-Axis-2500mm, Z-Axis-200mm Maximum travel speed of the machine 50m/min Maximum working speed of the machine 20m/min machine voltage 3PH, 380V, 50/60HZ Precision Working accuracy ±0.2mm, Repetitive positioning accuracy ±0.02mm
